Muti-Functional Cash Recycling Machine ATM Cash Deposit Machine - Electronic Products

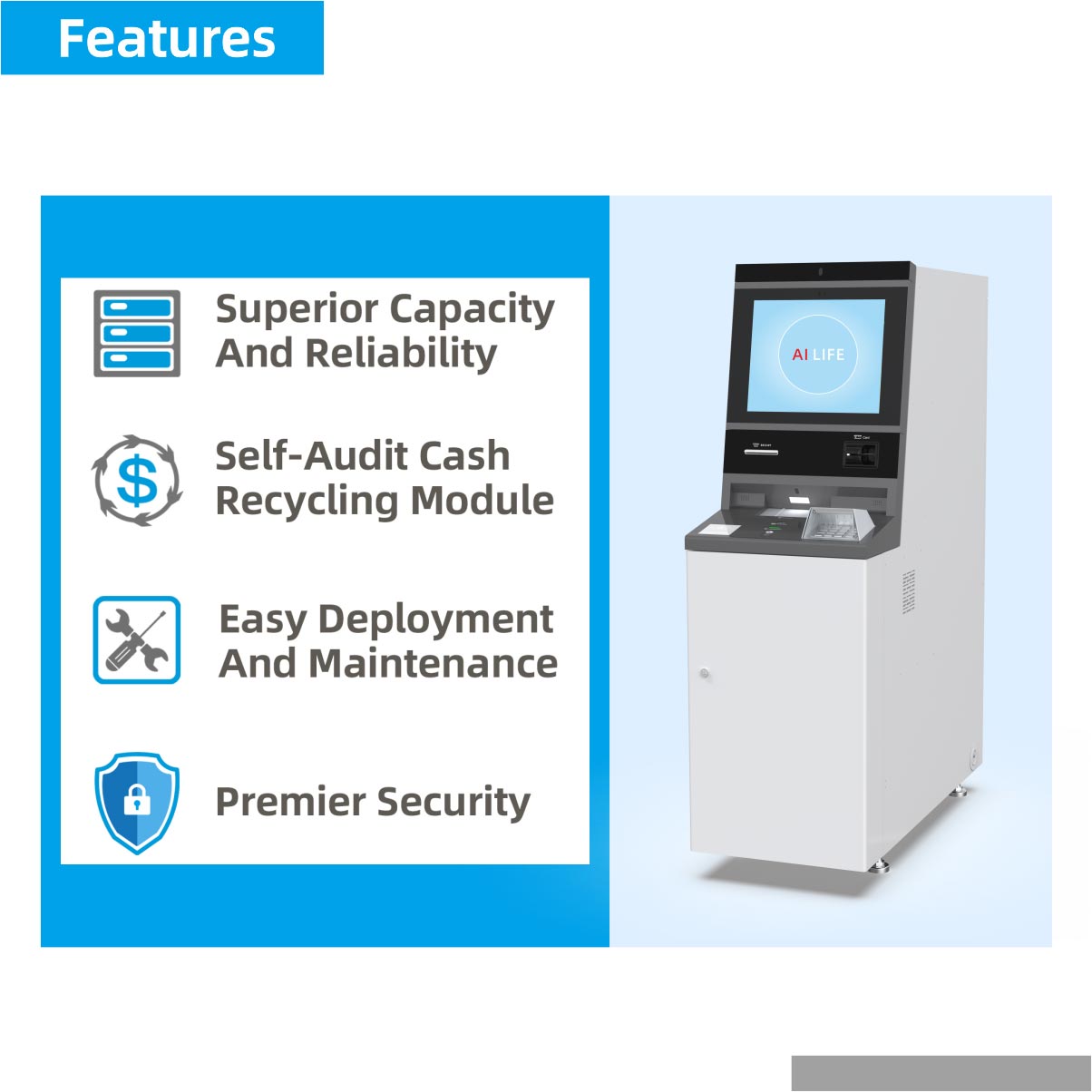

Guoguang CRS integrates an advanced cash recycling module, transferring heavy cash operations to self-service devices for processing. It can be used in scenarios such as finance and retail, providing large-capacity cash deposit and withdrawal services. Cash recycling technology can significantly reduce the demand for circulating funds and operating costs. Expanded configurations enable the machine to offer customers more value-added services, such as currency exchange, top-up, and bill payment.

Main Control Unit	Intel Core M3/i5, 1.8G RAM (up to 32GB), 1TB HDD, optional DVD-RW
Operating System (OS)	Windows 10 and above, English version, supports upgrade to Windows 11
Operation Screen	15-inch capacitive touch display (17/19-inch optional); Resolution ≥1024×768; Privacy screen optional
Face Recognition Camera (Opt)	3M pixels visible light camera + 2M pixels infrared camera; Supports face image capture and recognition algorithms
Encrypted Keyboard	4x4 encrypted keyboard (10 numeric keys + 6 function keys); Supports RSA, DES, Triple DES, AES hardware encryption; With tamper self-destruct function
Contactless IC Card Reader	Supports contactless IC and RFID reading; Certified by PBOC3.0 L1 & EMV L1
Card Reader	Supports magnetic stripe cards and contact IC cards; Supports card ejection upon power failure
QR Code Reader	Scans QR codes, barcodes, and various media (paper, LCD, mobile phones, etc.)
Receipt Printer	Line thermal printing, 80mm paper width; Supports graphic printing, paper shortage detection, and automatic paper cutting
Cash Recycling Module	Multiple anti-counterfeiting feature recognition; Supports major international currencies; Speed: 10 sheets/sec; Deposit/withdrawal port capacity: 300 sheets; Supports 4 recycling cassettes, 1 recovery cassette, 1 forgotten recovery cassette;
Cash Recycling Module	Recycling cassette capacity: 2850 sheets (deposit), 3350 sheets (withdrawal); Recovery cassette capacity: 2850 sheets; Forgotten recovery cassette capacity: 500 sheets
4G/5G Module (Opt)	Supports triple-mode network module (compatible with all network modes)
Power Supply	220VAC 5A
Dimensions & Weight	1170×500×1560mm (L×W×H), 600KG
